1.0. Purpose
1.1. Introduction
This
Software Requirements Specification provides a complete description of all the
functions and specifications of the Jacksonville State
University Computing and Information Sciences (CIS) Web Accessible Alumni
Database.
The
expected audience of this document is the faculty of CIS,
including the faculty who will use this system, Dr. Dennis Martin and
studio committee members, and the developer. It will also server as a reference for Studio students.
1.2. Scope
The Jacksonville State University Computing and Information Sciences Web Accessible Alumni Database (CISWAAD) is designed to run on the departmental server and to allow alums to fill out a survey form, create a new database entry, update an existing database entry, or contact another alum. The data will be held in an Access database on the departmental server.
1.3. Glossary
|
Term |
Definition |
|
Alum |
Graduate
of Jacksonville State University undergraduate computer science programs. |
|
BDE |
Borland
Database Engine |
|
CI |
Configuration
Item |
|
CIS |
Computing
and Information Sciences |
|
Entry |
Alum
stored in the Alum Database |
|
Html |
Hyper
text markup language |
|
IEEE |
Institute
of Electrical and Electronic Engineers |
|
QA |
Quality
assurance |
|
SCMP |
Software
Configuration Management Plan |
|
SDD |
Software
Design Document |
|
SEI |
Software
Engineering Institute, Pittsburgh,
Pa |
|
SQAP |
Software
Quality Assurance Plan |
|
SRS |
Software
Requirements Specification |
|
Survey |
Form
filled out and submitted by an Alum using the
CISWAAB. |
|
Tbd |
To
be decided |
|
Tbn |
To
be named |
|
Web
Site |
A
place on the world wide web |
1.4. References
[IEEE] The applicable IEEE standards are published in IEEE Standards
Collection,
2001 edition.
[Bruade]
The principal source of textbook material is Software Engineering: An Object-
Oriented Perspective by
Eric J. Bruade (Wiley 2001).
[Reaves
SPMP] Software Project Management Plan
Jacksonville State University
Computing and Information Sciences Web Accessible
Alumni Database.
Jacksonville State
University, 2003.
1.5. Document overview
The
remainder of this document is two chapters, the first providing a full
description of the project for the owners of the CIS. It lists all the functions performed by the system. The final chapter concerns
details of each of the system functions and actions in full for the software
developers assistance. These two sections are cross-referenced by topic; to
increase understanding by both groups involved.
2.0. Overall description
The CISWAAD
encompasses numerous files and information from the Alumni Database, as well as files on the
department server system. This system will be
completely web-based, linking to CISWAAD and the remote web server from a
standard web browser. An Internet connection is necessary to access the system.
2.1. System environment
Figure 1 System Design
The CISWAAD web site will be operated from the
departmental server. When an Alum connects to the
University Web Server, the University Web Server will pass the Alum to the
Departmental Server. The Departmental
Server will then interact with the Alumni Database through BDE, which allows the Windows type program to transfer
data to and from a database.
2.2. Functional
requirements definitions
Functional
Requirements are those that refer to the functionality of the system, i.e., what services it
will provide to the user. Nonfunctional (supplementary) requirements pertain to
other information needed to produce the correct system and are detailed
separately.
2.3. Use cases
The
system will consist of CIS Alumni Home page with five
selections.
The first
selection is to fill out a survey. The
questions on the survey will be created by a designated faculty member. The survey will ask the Alum questions
concerning their degree, job experience, how well their education prepared them
for their job, and what can the CIS department do to improve itself. This information will be retained on the departmental
server and an e-mail will be sent to the designated faculty member.
The second selection is to the Entries section. There are two choices on this page. One choice is to add a new entry. A form is presented to the Alum to be filled in. Certain fields in the form will be required, and list boxes will be used where appropriate. A password typed twice will be required of all new entries.
The second selection of the Entries page is to update an Alum entry. A form will be presented allowing the Alum to enter their year of graduation and then to select themselves from a list. A password will be required before the information will be presented to the Alum to be updated.
The third selection is to search or e-mail an Alum. A form will be presented requiring the requested Alums year of graduation. The requesting Alum will search a table to see if the requested Alum is in the database, and if so non-sensitive information will be returned. At this time the Alum can select to e-mail the Alumnus or search for another Alumnus. If the Alum chooses to e-mail the Alumnus a form will be presented for the message to be entered with the sending Alums name and e-mail. The message, with all necessary information will be forwarded to the requested Alum. The e-mail address of the requested Alum will not be seen by the sending Alum as a privacy measure.
All pages will return the Alum to the CIS Alumni
Home Page.
2.3.1. Use Case: Access Alumni Home Page

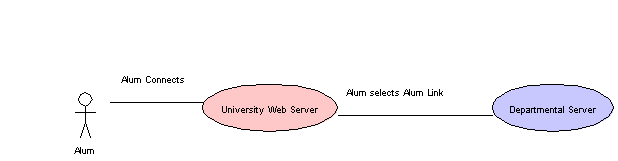

Figure 2 Access Alumni Home Page
Brief
Description
The Departmental Web Server is waiting on an
Alum to connect.
Initial
step-by-step description
For this use case to be initiated, the alum must be connected to the Internet and connected to the University Web Server.
1. The Alum connects to the
University Web Server.
2. The Alum selects the Alum
link on the CIS home page.
3. The University Web Server passes the Alum to the Alumni
Home Page.
Reference
SRS 3.2.1
2.3.2. Use Case: Alum Chooses Survey
Figure 3 Alum Selects Survey
Brief
Description:
The Alum chooses to fill out a survey.
Initial
step-by-step description:
For this use case to be initiated the Alum must be connected to the Internet and on the CIS Alumni Home Page.
1. The Alum selects the Fill
out a survey link.
2. The Departmental Server returns the survey form.
3. The Alum fills in the form.
4. The Alum clicks submit.
5. The Departmental Server retains information in the
database designated faculty member
will be notified.
6. The Departmental Server returns the Alum to the Alumni
Home Page.
Reference
SRS 3.2.2
2.3.3. Use Case: Create New Entry

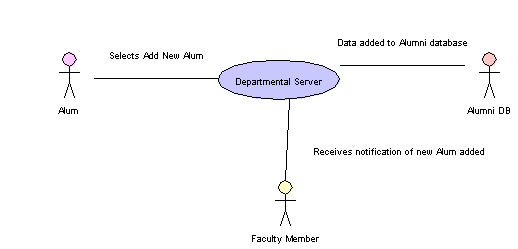

Figure 4 Alum Selects Create a New Entry
Brief
Description:
The Alum chooses to create a new entry on the Entries page.
Initial step-by-step description.
For this use case to be initiated the Alum must be connected to the Internet and on the CIS Entries page.
1. The Alum selects the Add a
New Alum link.
2. The Departmental Server returns the Add a New Alum
Form.
3. The Alum fills in the form.
4. The Alum can choose which
fields to make public or private.
5. The Alum clicks submit.
6. The Departmental Server checks to see if all required
fields contain data.
7. If all required fields
contain data the Departmental Server adds the data to the Alum
Database.
8. If a required filed is empty
the Departmental Server returns the form to the Alum with a message.
9. The Departmental Server returns the Alum to the Alumni
Home Page.
Reference:
SRS 3.2.3
2.3.4. Use Case: Update an Entry.

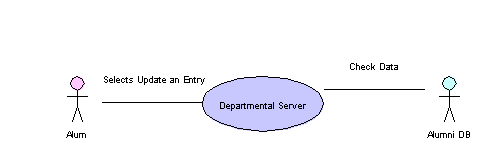

Figure 5 Alum Selects Update an Entry
Brief
Description:
The Alum chooses to update an existing entry in the Alumni Database.
Initial
step-by-step description:
For this use case to be initiated the Alum must be connected to the Internet and on the CIS Entries page.
1. The Alum chooses the Update
Alumni Information option.
2. The Department Server presents the Alum with a form.
3. The Alum fills in the year
of graduation.
4. The Departmental Server
returns a form with all graduates from that year.
5. The Alum checks the correct
graduate and enters his/her password
6. The Departmental Server searches the Alumni Database for the Alum name and password.
7. The Departmental Server
returns the Alums data if the password matches.
8. If the password does not
match the Departmental Server returns an error message and returns the Alum to
the previous page.
9. The Alum changes the
appropriate fields and clicks submit.
10. The Departmental Server replaces the old data with the
new.
11. The Departmental Server returns the Alum to the CIS
Alumni Home Page.
Reference:
SRS 3.2.4
2.3.5. Use Case: Search for an Alumni/E-mail and Alumni
Figure 6 Alum Selects Search/E-mail an Alum
Brief description:
The Alum chooses to search/e-mail Alum.
Initial
step-by-step description:
For this use case to be initiated the Alum must be connected to the Internet and on the Alumni CIS Home Page.
1. The Alum chooses Search for
an Alum.
2. The Departmental Server presents a form requesting the
year of graduation.
3. The Alum fills in the form
and clicks submit.
4. The Departmental Server queries the Alumni Database for the requested information.
5. The Departmental Server returns all Alums that graduated
that year.
6. The Alum chooses E-mail an Alum.
7. The Departmental Server presents a form.
8. The Alum fills in the form.
9. The Departmental Server checks the to
see if the required fields are not empty.
10. The Departmental Server queries the Alumni Database for the particular Alum.
11. If the Alum requested is not
in the Alumni Database, if there is no e-mail address
for the requested Alum, or if the Alum has requested that no e-mails be
forwarded, the Departmental Server will return a message that the
requested Alum can not be e-mailed.
12. If the Alum requested is in
the Alumni Database and there is an e-mail address the message
along with the requested Alums e-mail will be forwarded to the requested Alum.
13. The Departmental Server will return a message and return
the Alum to the CIS Alumni Home Page.
Reference:
SRS 3.2.5
2.4. Non-functional requirements
There are
requirements that are not functional in nature. Specifically, these are the
constraints the system must work within.
The web site must be compatible with both the Netscape and Internet Explorer web browsers. This system will use the same type of Internet security presently being used by Jacksonville State University.
3.0.
Requirement specifications
3.1. External interface specifications
None
3.2. Functional Requirements
3.2.1. Access Alumni Home Page
|
Use Case Name: |
Access Alumni Home Page |
|
Priority |
Essential |
|
Trigger |
Menu selection |
|
Precondition |
Alum is connected to the Internet and on the CIS home page |
|
Basic Path |
1. University Web Server sends the Alum to the Departmental Server. 2. The Departmental Server presents the Alum with the Alumni Home Page. |
|
Alternate Path |
N/A |
|
Postcondition |
The Alum is on the Alumni Home Page |
|
Exception Path |
If there is a connection failure the Departmental Server returns to the wait state |
|
Other |
|
|
Reference |
SRS 2.3.1 |
3.2.2. Survey
|
Use Case Name: |
Survey |
|
Priority |
Essential |
|
Trigger |
Selects |
|
Precondition |
The Alum is connected to the Internet and on the CIS Alumni Home Page |
|
Basic Path |
1. The Departmental Server presents the Alum with a form. 2. The Alum fills in the form and click submit 3. The Departmental Server checks to see if all required fields are not empty. 4. If the required fields are not empty, the Departmental Server creates a new record in then Survey Table of the Alumni Database. 5. If any of the required fields are empty, the Departmental Server returns a message and returns the Alum to the Survey form. 6. The Departmental Server returns the Alum to the Alumni Home Page |
|
Alternate Path |
N/A |
|
Postcondition |
The survey record is created in the Survey Table of the Alumni Database. |
|
Exception Path |
1. If the connection is terminated before the form is submitted, the fields are all cleared and the Departmental Server is returned to the wait state. |
|
Other |
|
|
Reference: |
SRS 2.3.2 |
3.2.3. Create a new entry
|
Use Case Name: |
Create a new entry |
|
Priority |
Essential |
|
Trigger |
Menu selection |
|
Precondition |
The Alum must be connected to the Internet and on the CIS Entries page. |
|
Basic Path |
1. The Alum clicks on add a new entry. 2. The Departmental Server returns a form. 3. The Alum fills in the form and clicks submit. 4. The Departmental Server checks to see if any required field is empty. 5. If any required field is empty the Departmental Server will send a message and return the Alum to the new entry form page. 6. If no required field is empty the Departmental Server will create a new record in the Alumni Table in the Alumni Database, and return the Alum to the CIS Alumni Home Page. 7. The Alum may select Cancel. 8. If the Alum selects Cancel, the form is cleared and the Alum is returned to the CIS Alumni Home page. |
|
Alternate Path |
N/A |
|
Postcondition |
A record is created in the Alumni Table of the Alumni Database. |
|
Exception Path |
1. If the connection is terminated before the form is submitted, the fields are cleared and the Departmental Server is returned to the wait state. 2. If the connection is terminated after the form is submitted, but before the Alum is returned to the CIS Alumni Home Page, the record is created in the Alumni Table of the Alumni Database. |
|
Other |
|
|
Reference: |
SRS 2.3.3 |
3.2.4 Update an Entry
|
Use Case Name: |
Update
an Entry |
|
Priority |
Essential |
|
Trigger |
Menu
selection |
|
Precondition |
The
Alum must be connected to the Internet and on the CIS Entries Page. |
|
Basic Path |
1. The Alum clicks on update
an entry link. 2. The Departmental Server returns a
form. 3. The Alum enters his/her
year of graduation. 4. The Departmental Server queries the
Alumni Database for that particular year and returns a table
of all graduates from that year in a form with radio buttons and requesting
their password. 5. If the password does not
match the Departmental Server returns a
message and allows the Alum to try again. 6. If after 3 tries the
password does not match, the Departmental Server will return a message
telling the Alum to contact the CIS designated faculty member to receive
their password. 7. If the password matches go
to 8. 8. The Departmental Server returns a
form with the data for that Alum in it and a message to update the data they
wish and click submit. 9. The Departmental Server with
replaces the old data with the new data and returns the Alum to the CIS
Alumni Home Page. |
|
Alternate Path |
If
after three attempts to match the name and password the Departmental Server will return
a message and block the Alum from the update section. |
|
Postcondition |
The
record in the Alumni Table of the Alumni Database has been
updated and the Alum is returned to the CIS Alumni Home Page. |
|
Exception Path |
1. If the connection is terminated before the form is submitted, the fields are cleared and the Departmental Server is returned to the wait state. 2. If the connection is terminated after the form is submitted, but before the Alum is returned to the CIS Alumni Home Page, the record in the Alumni Table of the Alumni Database is updated and the Departmental Server is returned to the wait state |
|
Other |
|
|
Reference: |
SRS
2.3.4 |
3.2.5. Search for an Alumni/E-mail an Alumni
|
Use Case Name: |
Search
for an Alumni |
|
Priority |
If
time permits. |
|
Trigger |
Menu
selection |
|
Precondition |
The
Alum is connected to the Internet and on the CIS Alumni Home Page. |
|
Basic Path |
1. The Alum clicks on e-mail
an alumni link. 2. The Departmental Server returns a
form. 3. The Alum fills in the form
and clicks submit. 4. The Departmental Server checks to
see if any required fields are empty. 5. If any required fields are
empty the Departmental Server returns a
message and the form. 6. If none of the required
fields are empty the Departmental Server queries the
Alumni Database for the requested Alums entry. 7. The Departmental Server
returns the non-private information on the requested Alum and a message
stating if the requested Alum will accept e-mails. 8. If the requested Alum is
not in the Alumni Database, the Departmental Server returns a message and the
Alum is returned to the CIS Home Page. 9. If the requested Alum will
accept e-mails, the Alum can select E-mail this Alum. 10. If not the Alum can select
Search for another Alum or return to CIS Alumni Home Page. 11. If the Alum chooses to
Search for another Alum go to step 2. 12. If the Alum selects return
to CIS Alumni Home Page the Departmental Server returns the Alum to the CIS
Alumni Home Page. 13. The Departmental Server
presents the Alum with a form to fill out and a place for the message. 14. The Alum selects send. 15. The Department Server will
forward the e-mail with all necessary information to the requested Alum. 16. The Departmental Server returns a
message and returns the Alum to the CIS Alumni Home Page |
|
Alternate Path |
N/A |
|
Postcondition |
The
Alum receives the information on the requested Alum, receives e-mail
confirmation message, or is returned
to the CIS Alumni Home Page |
|
Exception Path |
1. If the connection is terminated before the information is returned, the Departmental Server is returned to the wait state. 2. If the connection is terminated after the information is returned, the Departmental Server is returned to the wait state |
|
Other |
|
|
Reference: |
SRS
2.3.5 |
3.3. Detailed non-functional requirements
|
Attribute Name |
Attribute Type |
Attribute Size |
|
LastName*# |
String |
30 |
|
FirstName*# |
String |
30 |
|
MaidenName*# |
String |
30 |
|
Address1*# |
String |
50 |
|
Address2# |
String |
50 |
|
City*# |
String |
30 |
|
State*# |
String |
2 |
|
Zip*# |
Int |
6 |
|
Year*# |
Int |
4 |
|
AdditionalDegrees# |
String |
50 |
|
Spouse# |
String |
30 |
|
Children# |
String |
50 |
|
CurrentEmployment# |
String |
50 |
|
EmailAddress# |
String |
20 |
|
ReceiveEmails#^ |
Boolean |
1 |
|
Password*# |
String |
10 |
|
EntireRecordVisible*^ |
Boolean |
1 |
Fields
marked with an * are required fields.
Fields marked with a # can be visible or not
visible and is determined by the Alum.
Fields marked with a ^ are never visible to anyone other than the
Alum.
The questions that are used on the survey form will be initially created by a designated faculty member. The questions will be stored in the Question Record of the Survey Table of the Alumni Database. The responses to these questions will be stored in a record in an Answers record in the Survey Table of the Alumni Database.
Hardware: Departmental Server
Operation
System Window 98 or above
Internet
Connection Existing telephone lines
Code
Standard The web
pages will be coded in html by using Front Page.
The forms
will be done in Java Server Pages.
The
connection to the Alumni Database will be done with Windows
BDE.
Each page of the web site
will be fully documented.
Performance The system should generate the records in
the appropriate table of the Alumni Database 100% of the time.
3.4. System Evolution
In the
future this system will be update to allow students from the
Computer Masters Program to join. If
time does not permit the search/e-mail section can be done, possibly by another
Master Studio student. A report
generated by the system of the responses to the survey could be another addition
to the CISWAAD in the future.
