Software Requirement Specifications for the Student Course Information
System
October 13, 1998
Table of Contents
1. Introduction
1.1 Purpose
1.2 Scope
1.3 Definitions, Acronyms and Abbreviations
1.4 References
1.5 Overview
2. General Description
2.1 Product Perspective
2.2 Product Functions
2.3 User Characteristics
2.4 General Constraints
2.5 Assumptions and Dependencies
3. Specific Requirements
3.1 Functional Requirements
3.2 Performance Requirements
3.3 Design Constraints
3.4 Attributes
3.5 External Interface Requirements
4. Entity Relationships Diagram
5. Data Flow Diagram (Level 0)
6. Data Flow Diagram (Level 1)
7. Data Flow Diagram (Level 2)
8. Data Flow Diagram (Level 2)
10. Appendix A
11. Appendix B
1 Introduction
1.1 Purpose
1.1.1 Purpose of the Software Requirement Specification (SRS)
The purpose of this SRS is to supply California State University at
Northridge with an outline of a software product to handle the student
course information process.
1.1.2 Intended Audience
Individuals responsible for reviewing all proposals for this software
are the intended audience for this document. This may include students,
faculty, administrators and any individual who may be responsible for maintaining
and upgrading the current computer system, and purchasing new systems.
1.2 Scope
1.2.1 Software products to be produced
The software product proposed by this SRS is the Student Course Information
System (SCIS).
1.2.2 Purpose of the SCIS
The SCIS will provide students access to course performance information.
It will also give instructors a means to access and manage course information.
The SCIS will have the following features:
a) The student will be able to access the system through the Web.
b) The student will be able to "register" (initially identify themselves)
with the system for a specific class by providing their names, student
identification number and the class that they are taking.
c) The system will access the University's Student Information Database
to check that the student has meet the prerequisites (as specified by the
instructor).
d) The system will send an email message to the instructors whenever
a student registers for his/her class and does not have one or more of
the prerequisites.
e) When students "register" with the system, the system will ask them
to specify a password for them to use when retrieving their own performance
data.
f) Students will be asked to provide their email addresses that the
system will use to build mailing lists for each class.
g) The instructor will be able to identify each class for which information
is to be collected by specifying its course number, title, and term given.
h) Instructors will be able to specify each piece of course work (assignments,
test, etc.) to the system by giving it a name or identifier and indicating
the maximum number of possible points.
i) Instructors will be able to specify the prerequisites they want
the system to check for at the time the students "register".
j) After course work is graded, the instructors will be able to enter
the scores for each student.
k) Instructors will be able to generate a report containing all currently
available student information for a given course.
l) The system will automatically compute the mean, median and mode
for each item of course work.
m) Students will be able to access the information to retrieve their
own scores for a given course work item, but not be able to get the specific
scores of other students.
n) Students will be able to get statistical information, such as the
mean, for any course work item completed.
o) Students will be able to see if they have any course work missing.
p) Students will be able to see their total score to-date as a percentage
of the total number of points to-date.
q)The data in the system will be protected to prevent unauthorized
access.
1.2.3 Application of software
1.2.3.1 Relevant benefits, objectives, and goals
This software will provide an easily and widely accessible interface
for students and instructors to access course information. Such a system,
which does not currently exit, will benefit and facilitate communication
between instructors and students. The visual interface will provide prompts
to the user. The software will be accessible through any computer capable
of browsing the World Wide Web.
1.3 Definitions, Acronyms and Abbreviations
SRS: Software Requirements Specification.
CSUN: California State University Northridge.
SCIS: Student Course Information System.
USIDB: University Student Information
Database.
HTML: Hypertext Markup Language. The
formatting of text to be viewed on the Internet.
JavaScript: A computer programming language
designed to run on any computer running a JavaScript capable browser.
URL: Universal Resource Locator. Commonly
called an Internet address, a link to another web page or file.
WWW: World Wide Web. A subset of the
Internet designed to handle graphics and other visually appealing material.
Course: A subject suitable for teaching
which could be found in the Class Catalog.
Class: An instance of a course.
1.4 References
Entity/Relation Description
Data dictionary
1.5 Overview
1.5.1 Contents of the SRS
The SRS will provide a description of the SCIS. It will provide an
outline of the requirements. It will also provide an overview of the characteristics
d and constraints of the SCIS.
1.5.2 SRS organization
The following section, section 2, will provide an overview of the SCIS
and its perspectives, functions, characteristics, constraints, and dependencies.
Section 3 will outline in more detail the specific requirements for the
software.
2 General Description
2.1 Product Perspective
SCIS would be the first such system established in CSUN, it
would benefit students and instructors greatly. SCIS is a system that will
provide detailed class information for both instructors and students. It
is a system that can reduce large amounts of work for instructors and also
let students check their individual work and give them an idea of how their
performance compares to the other students. SCIS is not totally independent;
much of the students' information will come from University Students Information
Data Base(USIDB). The principal external interfaces that will be used include
a Register screen, Set User Attributes screen, Student Report screen, Instructor’s
Choice screen, Instructor’s Class Report screen, and Edit Class Table screen.
SCIS is a user friendly and portable program. It is accessible to students
and instructors 24 hours a day during the semester; however it is required
that computers have to be connected to the University's computing network.
2.2 Product Function
The main functions involved in the SCIS are organized depending
on the different types of users. The users include instructors and students.
The login process is the same for both users; however the system will be
dependent on different types of passwords to fetch different functions.
For students, the system would just fetch his/her individual class work
information report and also included class mean, median, mode, statistics
and etc.. For instructors the system would fetch a menu that would allowed
the instructors either to edit or change the class table or to view all
students' class information in that particular class. And also the system
would generate the report print out for both instructors and students.
2.3 User Characteristics
The users of the SCIS include instructors, students, faculty
and network administrators. The users are assumed to have at least high
school graduate educational level, and have the basic knowledge and experience
about a web browser. However, the User Graphical Interface, detailed user
manual and help file should provide enough help for any new user.
2.4 General Constraints
Since SCIS is dependent on USIDB and CSIDB, anyone who wants
to use the system has to make sure that his or her computer is connected
to the CSUN network. Students are not allowed to get the specific scores
of other students. In order to keep our first version simple and efficient,
our system would only allow students and instructors to access one class
at each login. If the feature that allows students and instructors to access
multiple classes at one login is desired, that feature would be provided
by the follow up versions. The other safety and security considerations
and the hardware/software limitations are listed in section 3.4 and 3.5.
2.5 Assumptions and Dependencies
Since SCIS is just a model of a real time system, it is assumed
that system can access USIDB and CSIBD, and retrieve the information that
is needed. It is also assumed that instructors have an employee password,
which has the different format from the student password, hence the system
will be able to distinguish between two different passwords.
3. Specific Requirements
3.1. Functional Requirements
3.1.1 Level 0
3.1.1.1.System
This system, called "Student-Course information System", is proposed
to assist both instructors and students in accessing and managing information
about student performance for a given class.
- Inputs: Password
ID
name
class
email address
class attributes
students' scores
- Processing: It can assist either instructors or students in
accessing
and managing information about student performance for a given class.
For students, they can view their class information. For instructors, they
can modify students' scores and view class information.
- Outputs:
Class information
Mailing List
Email message
3.1.2. Level 1
3.1.2.1. Login
This function identifies a user that is trying to access the system
by
recognizing the input that a user accessed and comparing it to information
that is already on the system.
- Inputs:
ID
Name
Ticket #
Password
Email Address
- Processing: It identifies the input by passing ID and password
to
check-access-permission which checks the input. If it is the right
input, it lets the user access the system. Otherwise, users have to register
first.
Permission determines which function the user can use. For student
users, they can use Report-Generator only. However, instructors can use
edit-class-table.
- Outputs: ID
password
ticket #
permission
email address
3.1.2.2. Check Access Permission
This function checks that the user is eligible and has the proper
requirements to access the different functions or operations of the
SCIS.
- Inputs:
ID
password
- Processing: It verifies that the user has the proper requirement
to be
eligible to access the different operations of the system by passing
user's id to user-profile-database. It receives password and permission
from user-profile-database checks and then passes the permissions to
Login.
- Outputs:
permission
3.1.2.3. Register
This function is the operation for the user who has to register.
Inputs:
User ID (both Instructor and Student)
Password
PIN #
email address
Ticket #
Processing: It lets the user register for a new class. It first
receives the User ID, Password, PIN#, email address, and Ticket #. It sends
the Student ID to the USIDB and then receives the completed course list
from the USIDB. It then sends the ticket # to the Class Table and receives
the prerequisites for the class. It checks to see if the student has the
correct prerequisites by comparing the two. It will notify a user by email.
- Outputs:
mail notification
3.1.2.4. Edit Class Table
This function allows a instructor to edit a class.
- Inputs:
id
ticket #
permission
- Processing: It gives class table a ticket #, and Class Table
returns a current class attribute to it. Instructors can edit a current
class attribute and save a new class attribute onto Class Table.
- Outputs:
new class attribute
3.1.2.5. Report Generator
This function is the operation that reports student course information
to the user.
- Inputs:
id
ticket #
permission
- Processing: It sends the id which it has received from Login
to USIDB and User Profile Database. The Report Generator then receives
current student information from USIDB and student email address from User
Profile Database. Also, it gets class attribute and scores from Class Table.
After that, it reports student class information.
- Outputs:
report
3.2. Performance Requirements
3.2.1. The system should be able to handle and support every student
who
will enroll in CSUN.
3.3.
Design Constraints
3.3.1. Standards Compliance
3.3.1.1. SCIS should take in a standard student ID and password.
3.3.1.2. SCIS should use standard course ticket numbers.
3.3.1.3. SCIS should be able to link to the existing student database.
3.3.1.4. SCIS should be able to link to the existing class database.
3.3.2. Hardware Limitation
3.3.2.1.The software should be able to run on any computer attached
to
the university network, including internet connection.
3.4 Attributes
3.4.1 Availability
3.4.1.1 SCIS should be available for instructor’s use at the time when
the registration process begins.
3.4.1.2 SCIS should be available for students’ use at the time when
classes begin.
3.4.1.3 SCIS should be available for users’ access 24 hours a day.
3.4.2 Security
3.4.2.1 All access to the system is possible only if a valid user ID
and password were submitted.
3.4.2.2 Secure data transfer over the Internet is provided using 40
or 128 bit encryption and Secure Sockets Layer.
3.4.2.3 Security level depends on the current user’s permissions
3.4.2.3.1 Student
3.4.2.3.1.1 A student can choose to disable Secure Connection over
the Internet to speed up the connection or in case there is no compatible
software available.
3.4.2.3.1.2 Unsuccessful login attempts are logged and if more then
10 attempts during 1 hour are detected a warning email message suggesting
to change the password and/or contact system administrator is sent to the
student.
3.4.2.3.2 Instructor
3.4.2.3.2.1 Instructors can choose between 128-bit and 40-bit encryption
depending on the software available, but can not disable Secure Connection
over the Internet.
3.4.2.3.2.2 All locations (IP addresses) from which the system was
accessed are logged. When a new location is detected the instructor is
notified during his/her next login. The notification will specify the date
and time the account was accessed from an unusual location and suggesting
to contact the system administrator in case of unauthorized access.
3.4.2.3.2.3 Unsuccessful login attempts are logged and if more then
5 attempts during 1 hour are detected a warning email message suggesting
to change the password and/or contact the system administrator is sent
to the instructor.
3.4.2.4 Only the information directly related to the users request
is transferred over the Internet. All statistical calculations are done
on the server and only the results are sent.
3.4.2.5 The user is automatically disconnected after a warning message
from the system when there is a 20 minute period of inactivity.
3.4.3 Maintainability
3.4.3.1 SCIS is developed using an object-oriented programming language.
3.4.3.2 All new classes used are clearly defined and documented.
3.4.3.3 All the classes, functions and other software elements that
come with precompiled libraries, operating system, etc. are clearly specified
(software product name, version, company information).
3.4.3.4 The user interface is developed with the current version of
HTML and/or JavaScript. The code should be compatible with both Microsoft
and Netscape products and documented in detail.
3.5 Other Requirements
3.5.1 External Interface Requirements
3.5.1.1 User Interface
3.5.1.1.1 The user interface lets users access the system through the
WWW, using a web browser (more specific in section 3.5.1.2)
3.5.1.1.2 Screen formats (See attached diagrams, Appendix A)
3.5.1.1.2.1 The Register screen lets the user input name, user ID,
class section number and password or PIN number for the first- time user
or for the user who needs to change his/her password or email address.
The user can press the OK button to submit the information, Clear
button to clear the text boxes or Cancel button to cancel the request.
3.5.1.1.2.2 The Set User Attributes screen comes out if the user submitted
his/her PIN number at the Register screen. It lets the user input a new
password, type it one more time in another text box to verify it and input
his/her new email address. The user can press the OK button to submit
the information, Clear button to clear the text boxes or Cancel
button to cancel the operation. When the information is accepted by the
system the user is returned to the Register screen unless he/she pressed
an EXIT button that disconnects the user from the system.
3.5.1.1.2.3 The Student’s Report screen comes out when the ID and password
submitted at the Register screen correspond to a student account. It contains
student’s name, ID, list of assignments and corresponding scores for the
current student and maximum scores for each assignment (in case of missing
course work an M score is assigned) and for current up to-date total
score and percentages. Statistical information about class performance,
such as mean, median and mode for each item of course work (assignment)
and for current up to-date total score is also included. The student can
press the EXIT button to exit the system.
3.5.1.1.2.4 The instructor’s choice screen comes out when the ID and
password submitted at the Register screen correspond to the instructor’s
account. The instructor can choose the View Class Information button
that invokes the Instructor’s Class Report screen or Edit Class Table
button that invokes Edit Class Table screen. The instructor can press the
EXIT
button to exit the system
3.5.1.1.2.5 The instructor’s Class Report screen contains all the information
that the Student’s Report does, but for ALL the students and for class
performance as well.(look above, 3.5.1.1.2.3). The instructor can press
the Back to Menu button to return to the Instructor’s choice screen
or the EXIT button to exit the system
3.5.1.1.2.6 The Edit Class Table screen is similar to the Instructor's
Class Report screen, but every cell of the table contains a textbox that
contains the corresponding score that can be changed by the instructor.
If the instructor presses the Save button, the entered changes are
saved and all the textboxes are deactivated. If the instructor presses
the Cancel button, the entered changes are discarded and all the
textboxes are deactivated. If the instructor presses the Add New Assignment
button, the Edit Class Table screen comes out, but the table has one more
column for the new assignment. The instructor also can press the Back
to Menu button to return to the Instructor's Choice screen or the EXIT
button to exit the system.
3.5.1.2 Software Interface
3.5.1.2.1 The user interface should be compatible both with Microsoft
and Netscape products and should look and behave the same both with Netscape
Navigator and Internet Explorer. It must be backwards compatible with the
browsers version at least one version before the latest.
3.5.1.2.2 The user interface should look and behave the same regardless
the client’s platform. Minimum requirement is support for Windows 3.xx,
Windows 95/98 (and current version), MacOS7, MacOS8and UNIX.
3.5.1.2.3 The server side of SCIS should run on the k200 system using
existing operating system HP-Unix.
3.5.2 Data Base
3.5.2.1 The System Database includes two tables that are stored in
two separate files
3.5.2.1.1 Class table that contains the list of assignments, maximum
scores for each assignment and corresponding score for every students according
to student’s ID numbers.
3.5.2.1.2 Password-email-permissions table contains passwords, email
addresses and access permissions for all the users.

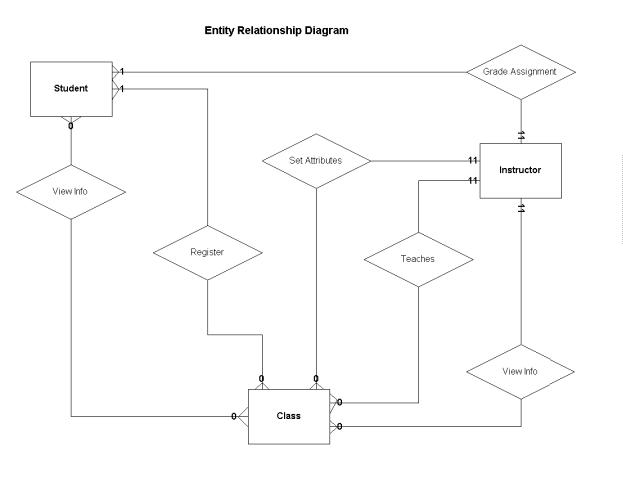

4.Entity Relationships Diagram
5. Data Flow Diagram (Level 0)
6. Data Flow Diagram (Level 1)

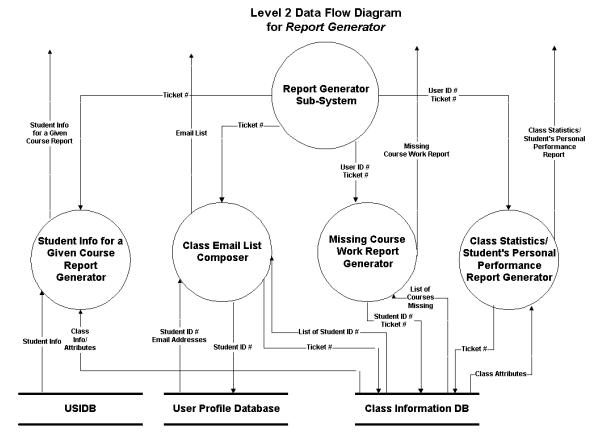

7. Data Flow Diagram (Level 2)

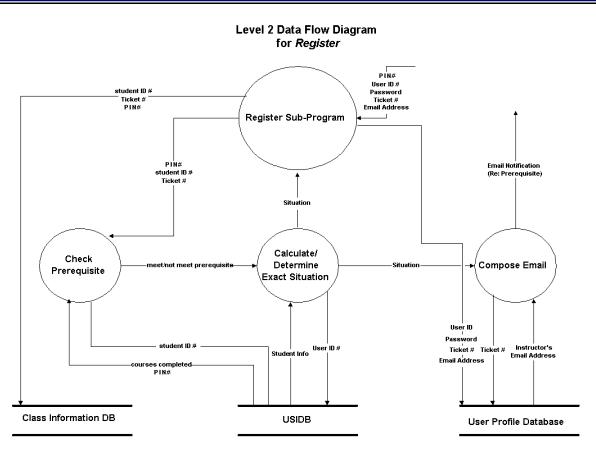

8. Data Flow Diagram (Level 2)
10 Appendix A
10.1 HTML
files of sample screens
10.2 Capture
of sample screens
11 Appendix B
| Name |
Aliases |
Description |
Generated by |
Used by |
Form |
| User Identification |
ID# |
Identifying
user |
University |
Login,
Register,
Report Generator,
User Profile Database,
USIDB,
Class Table |
seven digit number |
| Instructor Identification |
Instructor ID |
Identifying
instructor |
University |
Edit Class Table |
seven digit number |
| Student Identification |
User ID |
Identifying student |
University |
USIDB,
Class Table |
seven digit
number |
| Personal Identification Number |
PIN# |
Identifying student |
University |
Register,
USIDB |
four digit number |
| Name |
Name |
User’s Name |
User |
Login |
50 char |
| Ticket # |
Class Identification
Number |
Identifying Class |
University |
Login,
Register,
User Profile Database,
Edit Class Table,
Class Table,
Report Generator |
5 digit number |
| Password |
User Password |
Identifying User |
User |
Register,
Login,
Check Access Permission,
User Profile Database |
25 char |
| User Email Address |
User Email
Address |
User Email Address |
User |
Login,
Register,
User Profile Database |
25 char? |
| Instructor Email Address |
Instructor
Email Address |
Instructor
Email
Address |
Instructor |
Register,
User Profile Database |
25 char? |
| Student Email Address |
Student Email Address |
Student
Email
Address |
Student |
Login,
Register,
User Profile Database |
25char? |
| Permissions |
Permissions |
Permissions |
User Profile Database |
Check Access Permission,
Login,
Edit Class Table |
1 digit number |
| Completed Course List |
Completed Course List |
Completed Course List |
USIDB |
Register |
Text file |
| Email Notification |
Email Notification |
Email Notification |
Register |
Instructor |
Text file |
| Name |
Aliases |
Description |
Generated by |
Used by |
Form |
| New Class Attributes |
New Class Attributes |
New Class Attributes |
Edit Class Table |
Class Table |
Text file |
| Current Class Attributes |
Current Class Attributes |
Current Class Attributes |
Class Table |
Report Generator |
Text file |
| Scores |
Scores |
Scores |
Class Table |
Report
Generator |
Text file |
| Current Student Information |
Current Student Information |
Current Student Information |
USIDB |
Report Generator |
Text file |
| Prerequisites |
Prerequisites |
Prerequisites |
Class Table |
Register |
Text file |
| Completed Course List |
Completed Course List |
Completed Course List |
USIDB |
Register |
Text file |
| Report |
User Report |
Individual student report or class
report (for instructor only) |
Report Generator |
User |
Html file |
