MSE 101OL: Week 6
Topic: AutoCAD Part 2
Download Lecture: Click Here
Homework Assignment #6
Objectives: Complete AutoCAD Drawing

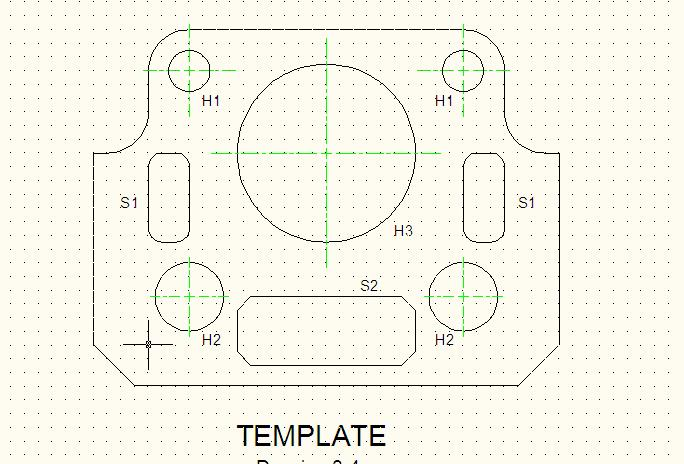

This drawing gives you practice with fillets, chamfers, layers and zooming. Notice that because of the smaller dimension here, we have recommended a smaller LTSCALE settings.
YOU DO NOT HAVE TO DRAW THIS TO SCALE
Drawing Suggestion
GRID = 0.25
SNAP = 0.125
LTSCALE = 0.25
LineType = Center2
Start by drawing the outline of the object and then fillet and chamfer as shown.
Because this drawing appears quite small on your screen, it would be a good idea to zoom in on the actual drawing space you are using and pan if necessary.
Draw the cutouts labeled S1 and S2 and then fillet as shown.
Label all cutout as shown.
Due: October 12, 2017
Submit via Email: mse101access.vazan@gmail.com
Homework Submission Details
Homework problems must be submitted online at mse101access.vazan@gmail.com problems must be numbered, and homework documents must be identified by student name and school (for example; Doe, John ACME High School). DO NOT RELY ON YOUR EMAIL ADDRESS TO IDENTIFY WORK YOU SUBMIT.
Each student must turn in his/her own homework. All submissions are to be individual efforts with the exception of the Project reports.
The format for the project design report is available on line. This format is used for the design project in the laboratory. Written reports will be evaluated for compliance to the format requirements, the writing quality, timeliness, and content.
